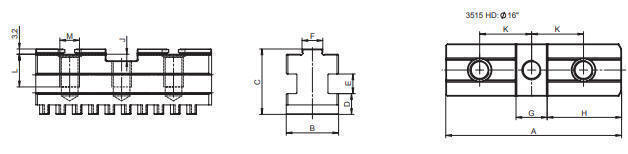

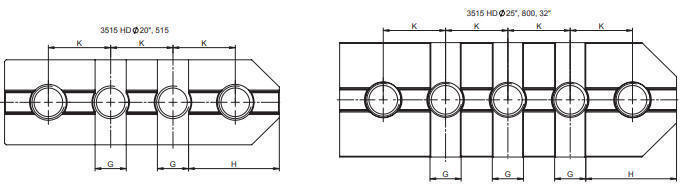

BISON  REPLAEMENT MASTER JAWS FOR
3-JAW EXTRA HEAVY DUTY SCROLL CHUCKS






* Screws are included in delivery
BISON Chuck
Type		 Code No.
3 pc set		 A
[in]		 B
[in]		 C
[in]		 D
[in]		 E
[in]		 F
[in]		 G
[in]		 H
[in]		 J
[in]		 K
[in]		 L
[in]		 M* Weight
lbs / pc.
3515-16” HD 7-885-5167 5.20 1.97 2.15 0.63 0.55 0.50 0.75 2.25 0.28 1.50 1.28 M20-2.5 4.30
3515-20” HD 7-885-5207 6.65 1.97 2.15 0.63 0.55 0.50 0.75 2.25 0.28 1.50 1.28 M20-2.5 5.51
3515-25” HD 7-885-5289 8.27 2.76 2.44 0.79 0.79 0.50 0.75 2.25 0.28 1.50 1.30 M22-2.5 11.24
3515-32” HD 7-885-5329 8.86 2.76 2.44 0.79 0.79 0.50 0.75 2.25 0.28 1.50 1.30 M22-2.5 12.13
