BISON EXTRA HEAVY
DUTY 4-JAW INDEPENDENT

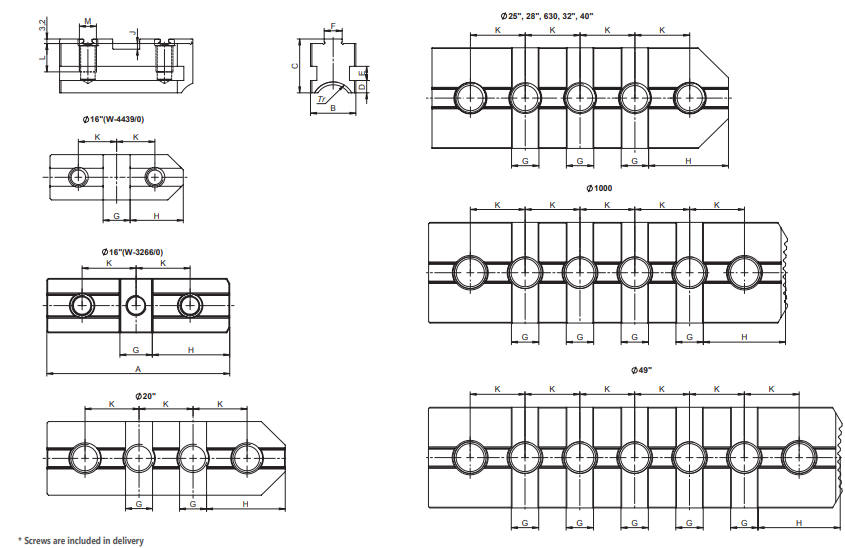

OIL COUNTRY CHUCK REPLACEMENT HARD MASTER JAWS
BISON Chuck Type
Code No.
4 pc set
Code No.
1 pc
A
[in]
B
[in]
C
[in]
D
[in]
E
[in]
F
[in]
G
[in]
H
[in]
J
[in]
K
[in]
L
[in]
M*
LH
Thread
[mm]
4317-16”-8A2-5.3” HD
4347-16”-8-5.3” HD
4347-16”-11-6.5” HD
4317-16”-11A2 DIN-6.5” HD
4317-20”-15A2 DIN-10” HD
7-890-1624
7-890-1625
5.2
2.36
2.28
0.62
0.79
0.5
0.75
2.25
0.28
1.5
1.32
M20-2.5
Tr 44x8
4347-20”-8-5.3” HD
4347-20”-11-6.5” HD
4317-20”-11A2 DIN-6.5” HD
4317-20”-15A2 DIN-8” HD
7-890-2024
7-890-2025
6.69
2.36
2.28
0.62
0.79
0.5
0.75
2.25
0.28
1.5
1.32
M20-2.5
Tr 44x8
4317-25”-15A2 DIN-10.5” HD
4317-25”-20A2-10.5” HD
4317-25”-20A2-12.5” HD
4317-28”-20A2-12.5” HD
4347-28”-11-7.5” HD
4317-28”-15A2 DIN-10.5” HD
4317-32”-15A2 DIN-10.5” HD
4317-32”-20A2-12.5” HD
4317-32”-20A2-14.5” HD
4317-40”-28A2-20.5” HD
