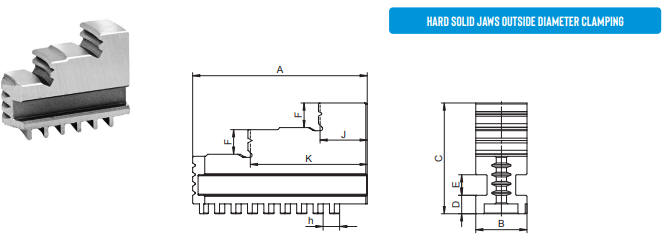

BISON SOLID ONE PIECE OUTSIDE DIAMETER CLAMPING JAWS



Chuck Size Code No. Qty A
[in]		 B
[in]		 C
[in]		 D
[in]		 E
[in]		 F
[in]		 J
[in]		 K
[in]		 h
[in]
    in set
3" 7-880-303 3 1.26 0.43 1.1 0.24 0.24 0.24 0.37 0.83 0.16
3" 7-880-503 3
4" 7-880-304 3 1.65 0.59 1.22 0.24 0.24 0.28 0.43 1.06 0.24
4" 7-880-404 4
4" 7-880-504 3
5" 7-880-305 3
5" 7-880-405 4 2.01 0.59 1.57 0.24 0.31 0.31 0.51 1.32 0.28
5" 7-880-605 6
5" 7-880-505 3
6" 7-880-306 3 2.76 0.79 2.09 0.31 0.31 0.39 0.75 1.77 0.31
6" 7-880-406 4
6" 7-880-606 6
6" 7-880-306 3
8" 7-880-308 3 3.35 0.98 2.13 0.35 0.39 0.47 0.91 2.24 0.31
8" 7-880-408 4
8" 7-880-608 6
8" 7-880-308 3
10" 7-880-310 3 4.13 1.1 2.48 0.43 0.47 0.55 1.1 2.74 0.35
10" 7-880-410 4
10" 7-880-610 6
12"
12"
12"		 7-880-312 3 4.92 1.26 2.87 0.5 0.47 0.71 1.36 3.27 0.39
  7-880-412 4
  7-880-612 6
16" 7-880-316 3 5.71 1.42 3.62 0.59 0.55 0.87 1.42 3.9 0.47
16" 7-880-416 4
16" 7-880-616 6
20"
20"
20"		 7-880-320 3 7.09 1.57 3.94 0.63 0.55 1.02 1.97 4.7 0.56
  7-880-420 4
  7-880-620 6
25" 7-880-325 3 8.86 1.97 4.33 0.63 0.55 1.1 2.6 5.87 0.56
25" 7-880-425 4
25" 7-880-625 6
32"
32"
32"		 7-880-332 3 8.86 1.97 4.33 0.63 0.55 1.1 2.6 5.87 0.56
  7-880-432 4
  7-880-632 6
40" 7-880-340 3 11.46 2.76 5.51 0.87 0.79 1.34 3.35 7.48 0.71
40" 7-880-440 4
40" 7-880-640 6
