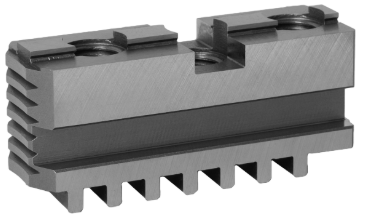

BISON 3-JAW SCROLL CHUCK HEAVY DUTY MASTER JAWS

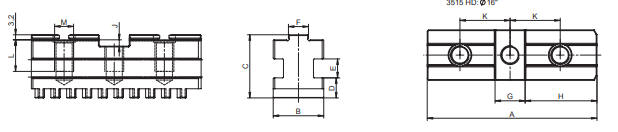

BISON Chuck Type	Chuck Size	Code No. 3 pc set	A [in]	B [in]	C [in]	D [in]	E [in]	F [in]	G [in]	H [in]	J [in]	K [in]	L [in]	M*
3295	16"	7-885-116	4.72	1.42	1.93	0.59	0.55	0.50	0.75	2.25	0.28	1.50	0.87	M16-2.00
3295	20"	7-885-120	4.72	1.57	2.13	0.63	0.55	0.50	0.75	2.25	0.28	1.50	1.28	M20-2.5
3295	26"	7-885-126	5.00	1.97	2.15	0.63	0.55	0.50	0.75	2.13	0.28	1.50	1.28	M20-2.5
3597	12"	7-885-112	4.23	1.26	1.57	0.50	0.47	0.50	0.75	1.78	0.16	1.25	0.79	M12-1.75
3597	16"	7-885-116	4.72	1.42	1.93	0.59	0.55	0.50	0.75	2.25	0.28	1.50	0.87	M16-2.00
3597	20-1/3"	7-885-120	4.72	1.57	2.13	0.63	0.55	0.50	0.75	2.25	0.28	1.50	1.28	M20-2.5
3597	26"	7-885-126S	5.00	1.97	2.15	0.63	0.55	0.50	0.75	2.25	0.28	1.50	1.28	M20-2.5
3597	32"	7-885-132	6.30	1.97	2.15	0.63	0.55	0.50	0.75	2.25	0.28	1.50	1.28	M20-2.5
3597	40"	7-885-140	9.84	2.76	2.52	0.87	0.79	0.50	0.75	2.25	0.28	1.50	1.57	M22-2.5
