GATOR PEO SERIES
EXTRA HEAVY DUTY 3-JAW SCROLL CHUCK REPLACEMENT JAWS

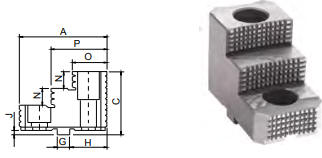

PEO SERIE 3-JAW EXTRA HEAVY DUTY CHUCK HARD
TOP JAWS
|
CHUCK |
A |
B |
K |
H |
G |
F |
J |
D |
E |
C |
N |
O |
P |
WT.
1ST
LBS. |
PART
NUMBER |
|
20" |
5.342 |
2.559 |
1.5 |
2.248 |
.7496 |
.5004 |
.244 |
.866 |
1.299 |
3.229 |
.827 |
2.047 |
3.366 |
7.28 |
TJ-PEO-500 |
|
25" |
5.354 |
3.346 |
1.5 |
2.248 |
.7496 |
.5004 |
.244 |
.945 |
1.378 |
3.819 |
1.102 |
2.047 |
3.366 |
11.16 |
TJ-PEO-800 |
|
28" |
5.354 |
3.346 |
1.5 |
2.248 |
.7496 |
.5004 |
.244 |
.945 |
1.378 |
3.819 |
1.102 |
2.047 |
3.366 |
11.16 |
TJ-PEO-800 |
|
31-1"2 |
3.354 |
3.346 |
1.5 |
2.248 |
.7496 |
.5004 |
.244 |
.945 |
1.378 |
3.819 |
1.102 |
2.047 |
3.366 |
11.16 |
TJ-PEO-800 |
|
40" |
8.267 |
3.346 |
1.5 |
2.248 |
.7496 |
.5004 |
.246 |
.945 |
1.378 |
4.330 |
.984 |
1.992 |
3.330 |
18.74 |
TJ-PEO-1000 |
|
50" |
8.267 |
3.346 |
1.5 |
2.248 |
.7496 |
.5004 |
.246 |
.945 |
1.378 |
4.330 |
.984 |
1.992 |
3.330 |
18.74 |
TJ-PEO-1000 |
GATOR PEO SERIES 3-JAW EXTRA HEAVY
DUTY CHUCK MASTER JAWS

CHUCK
DIAMETER |
A |
B |
G |
E |
D |
C |
H |
J |
K |
F |
L |
S |
M
THREAD |
WT.
1 SET
LBS. |
PART NUMBER |
|
20" |
6.35 |
2.362 |
.7496 |
787 |
.787 |
2.992 |
2.248 |
.283 |
1.5 |
.50 |
1.417 |
.126 |
3/4-10 |
10.55 |
MJ-PEO-500 |
|
25" |
8.858 |
.749 |
.7496 |
.984 |
.984 |
2.992 |
2.248 |
.283 |
1.5 |
.50 |
1.417 |
.126 |
7/8-9 |
21.52 |
MJ-PEO-800 |
|
28" |
8.858 |
3.150 |
.7496 |
.984 |
.984 |
2.992 |
2.248 |
.283 |
1.5 |
.50 |
1.299 |
.126 |
7/8-9 |
21.52 |
MJ-PEO-800 |
|
31/1/2" |
8.858 |
3.150 |
.7496 |
.984 |
.981 |
2.992 |
2.248 |
.283 |
1.5 |
.50 |
1.299 |
.126 |
7/8-9 |
21.52 |
MJ-PEO-800 |
|
40" |
14.449 |
3.150 |
.7496 |
.984 |
.984 |
2.992 |
2.248 |
.283 |
1.5 |
.50 |
1.299 |
.126 |
7/8-9 |
31.96 |
MJ-PEO-1000 |
|
50" |
14.449 |
3.150 |
.7496 |
.984 |
.984 |
2.992 |
2.248 |
.283 |
1.5 |
.50 |
1.299 |
.126 |
7/8-9 |
31.96 |
MJ-PEO-1000 |
