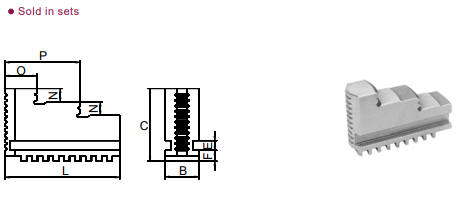

GATOR SOLID ONE PIECE HARD JAWS FOR INSIDE DIAMETER CLAMPING



HARD SOLID ONE PIECE JAWS FOR INSIDE DIAMETER CLAMPING


CHUCK
DIAMETER		 C L B F E N P O WT./PC.
LBS.		 PART NUMBER
3
JAW		 4
JAW		 6
JAW
4" 1.259 1.653 .590 .236 .236 .275 1.063 .433 .19 OJ-PS3-100 OJ-PS4-100 OJ-PS6-100
5" 1.574 2.007 .787 .315 .315 .315 1.313 .512 .40 OJ-PS3-125 OJ-PS4-125 OJ-PS6-125
6-1/4" 2.086 2.755 .787 .315 .315 .393 1.772 .748 .80 OJ-PS3-160 OJ-PS4-160 OJ-PS6-160
8" 2.126 3.345 .984 .354 .393 .472 2.244 .906 1.07 OJ-PS3-200 OJ-PS4-200 OJ-PS6-200
10" 2.480 4.133 1.102 .433 .472 .551 2.736 1.102 1.73 OJ-PS3-250 OJ-PS4-250 OJ-PS6-250
12-1/2" 2.952 4.921 1.259 .500 .472 .708 3.268 1.358 2.90 OJ-PS3-315 OJ-PS4-315 OJ-PS6-315
15-3/4" 3.622 5.708 1.417 .590 .551 .886 3.898 1.417 5.20 OJ-PS3-400 OJ-PS4-400 OJ-PS6-400
20" 3.937 7.086 1.574 .629 .551 1.023 4.705 1.969 7.33 OJ-PS3-500 OJ-PS4-500 OJ-PS6-500

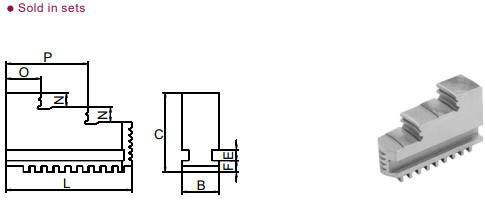

HARD SOLID ONE PIECE JAWS FOR OUTSIDE DIAMETER CLAMPING

CHUCK
DIAMETER		 C L B F E N P O WT./PC.
LBS.		 PART NUMBER
3
JAW		 4
JAW		 6
JAW
4" 1.259 1.653 .590 .236 .236 .275 1.063 .433 .19 IJ-PS3-100 OJ-PS4-100 OJ-PS6-100
5" 1.574 2.007 .787 .315 .315 .315 1.313 .512 .40 OJ-PS3-125 OJ-PS4-125 OJ-PS6-125
6-1/4" 2.086 2.755 .787 .315 .315 .393 1.772 .748 .80 OJ-PS3-160 OJ-PS4-160 OJ-PS6-160
8" 2.126 3.345 .984 .354 .393 .472 2.244 .906 1.07 OJ-PS3-200 OJ-PS4-200 OJ-PS6-200
10" 2.480 4.133 1.102 .433 .472 .551 2.736 1.102 1.73 OJ-PS3-250 OJ-PS4-250 OJ-PS6-250
12-1/2" 2.952 4.921 1.259 .500 .472 .708 3.268 1.358 2.90 OJ-PS3-315 OJ-PS4-315 OJ-PS6-315
15-3/4" 3.622 5.708 1.417 .590 .551 .886 3.898 1.417 5.20 OJ-PS3-400 OJ-PS4-400 OJ-PS6-400
20" 3.937 7.086 1.574 .629 .551 1.023 4.705 1.969 7.33 OJ-PS3-500 OJ-PS4-500 OJ-PS6-500


Save Time With
J-LOC Quick Change Chuck Jaws!

Available For Most Chucks With Removable Top Jaws
