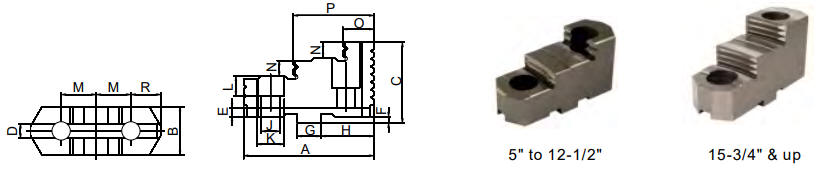

GATOR CHUCK REPLACEMENT HARED TOPJAWS
PA, PB, PO, AND PS SERIES CUCKS
CHUCK
DIA.
(INCHES) |
M |
H |
G |
J |
K |
D |
E |
F |
N |
C |
B |
0AL |
O |
PP |
WT.
(LBS) |
PART
NUMBER |
|
.750 |
.625 |
.890 |
.4996 |
.35 |
.59 |
3.129 |
.157 |
.126 |
.315 |
1.516 |
.886 |
2.205 |
.571 |
1.38 |
.093 |
TJ-PS3-125 |
|
6 1/4 |
.750 |
1-1/8 |
.4996 |
.43 |
.71 |
3.129 |
.157 |
.126 |
.335 |
1.634 |
.984 |
2.638 |
.807 |
1.69 |
1.20 |
TJ-PS3-160 |
|
8 |
.875 |
1-3/8 |
.4996 |
.43 |
.71 |
3.129 |
.157 |
.126 |
.413 |
1.772 |
1.181 |
3.347 |
.984 |
2.09 |
2.10 |
TJ-PS3-200 |
|
10 |
.687 |
1-9/16 |
.7496 |
.55 |
.78 |
.5004 |
.157 |
.126 |
.531 |
2.087 |
1..417 |
3.740 |
1.14 |
2.52 |
3.20 |
TJ-PS3-250 |
|
12 1/2 |
1 1/4 |
1-7/8 |
.7496 |
.55 |
.78 |
.5004 |
.157 |
.126 |
.689 |
2.283 |
1.654 |
4.252 |
1.22 |
3.01 |
5.10 |
TJ-PS3-315 |
|
15 3/4 |
1 1/2 |
2.250 |
.7496 |
.71 |
1.0 |
.5004 |
.157 |
.248 |
.689 |
2.756 |
1.772 |
5.000 |
1.85 |
3.46 |
7.30 |
TJ-PS3-400 |
|
20 |
1 1/2 |
2.250 |
.7496 |
.87 |
1.3 |
.5004 |
.157 |
.248 |
.787 |
3.425 |
1.654 |
5.157 |
2.05 |
3.23 |
14.4 |
TJ-PS3-500 |
|
25 & 32 |
1 1/2 |
2.250 |
.7496 |
.87 |
1.3 |
.5004 |
.157 |
.248 |
.787 |
3.425 |
2.047 |
2.047 |
2.05 |
3.23 |
27.1 |
TJ-PS3-630 |
Save Time With
J-LOC Quick Change Chuck Jaws!
Available For Most Chucks With
Removable Top Jaws |
