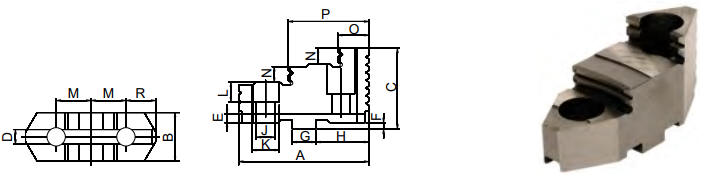

GATOR TECH-TRU ADJUSTIBLE CHUCK REPLACEMENT HARD TOP JAWS
6-JAW CHUCK
PA AND PB SERIES




CHUCK
DIA.
(INCHES)		 M H G J K D E F N C B 0AL O PP WT.
(LBS)		 PART
NUMBER
.750 .625 .890 .4996 .35 .59 3.129 .157 .126 .315 1.516 .886 2.205 .571 1.38 1.90 TJ-PS3-125
6 1/4 .750 1-1/8 .4996 .43 .71 3.129 .157 .126 .335 1.634 .984 2.638 .807 1.69 2.40 TJ-PS3-160
 8 .875 1-3/8 .4996 .43 .71 3.129 .157 .126 .413 1.772 1.181 3.347 .984 2.09 4.20 TJ-PS3-200
 10 .687 1-9/16 .7496 .55 .78 .5004 .157 .126 .531 2.087 1..417 3.740 1.14 2.52 6.40 TJ-PS3-250
12 1/2 1 1/4 1-7/8 .7496 .55 .78 .5004 .157 .126 .689 2.283 1.654 4.252 1.22 3.01 10.20 TJ-PS3-315
15 3/4 1 1/2 2.250 .7496 .71 1.0 .5004 .157 .248 .689 2.756 1.772 5.000 1.85 3.46 14.60 TJ-PS3-400
20 1 1/2 2.250 .7496 .87 1.3 .5004 .157 .248 .787 3.425 1.654 5.157 2.05 3.23 28.80 TJ-PS3-500
25 & 32 1 1/2 2.250 .7496 .87 1.3 .5004 .157 .248 .787 3.425 2.047 2.047 2.05 3.23 44.20 TJ-PS3-630
