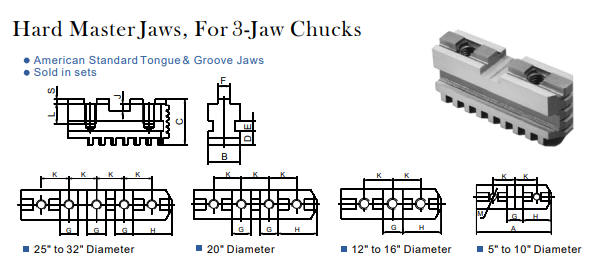

GATOR TECH-TRU ADJUSTIBLE CHUCK REPLACEMENT MASTER JAWS
3-JAW CHUCK
PA AND PB SERIES

CHUCK
DIAMETER (INCHES)

K

H

G

F

J

S

L

D

E

B

C

OAL

THREAD

WT.
(LBS)

PART
NUMBER

5

.625

.890

.499

.312

.157

.126

.472

.315

.315

.787

1.102

2.125

5/16-18

.93

MJ-PS3-125

6 1/4

.750

1.125

.499

.312

.157

.126

.551

.315

.315

.787

1.141

2.559

38-16

1.2

MJ-PS3-160

8

.875

1.375

.499

.312

.157

.126

.551

.354

.393

.984

1.299

3.102

3/8-16

2.1

MJ-PS3-200

10

1.062

1.562

.749

.500

.157

.126

.629

.433

.472

1.102

1.417

3.622

1/2-13

3.2

MJ-PS3-250

12 1/2

1.250

1.8752.250

.749

.500

.157

.126

.629

.500

.472

1.259

1.574

4.330

1/2-13

5.1

MJ-PS3-315

15/3/4

1.500

2.250

.749

.500

.283

.248

.866

.590

.551

1.417

1.929

5.118

5/8-11

7.3

MJ-PS3-400

20

1.500

2.250

.749

.500

.283

.248

1.259

.629

.551

1.574

2.125

6.535

3/4-10

14.4

MJ-PS3-500

25

1.500

2.250

.749

.500

.283

.248

1.259

.629

.551

1.968

2.145

8.267

3/4-10

27.1

MJ-PS3-630

31 1/2

1.500

2.250

.749

.500

.283

.248

1.259

.629

.551

1.968

2.145

8.858

3/4-10

27.1

MJ-PS3-800

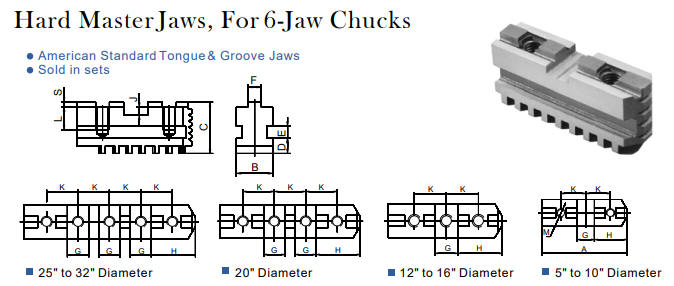

GATOR TECH-TRU ADJUSTIBLE CHUCK REPLACEMENT MASTER JAWS
6-JAW CHUCK
PA SERIES

CHUCK
DIAMETER (INCHES)

K

H

G

F

J

S

L

D

E

B

C

OAL

THREAD

WT.
(LBS)

PART
NUMBER

5

.625

.890

.499

.312

.157

.126

.472

.315

.315

.787

1.102

2.125

5/16-18

1.9

MJ-PS6-125

6 1/4

.750

1.125

.499

.312

.157

.126

.551

.315

.315

.787

1.141

2.559

38-16

2.4

MJ-PS6-160

8

.875

1.375

.499

.312

.157

.126

.551

.354

.393

.984

1.299

3.102

3/8-16

4.2

MJ-PS6-200

10

1.062

1.562

.749

.500

.157

.126

.629

.433

.472

1.102

1.417

3.622

1/2-13

6.4

MJ-PS6-250

12 1/2

1.250

1.8752.250

.749

.500

.157

.126

.629

.500

.472

1.259

1.574

4.330

1/2-13

10.2

MJ-PS6-315

15/3/4

1.500

2.250

.749

.500

.283

.248

.866

.590

.551

1.417

1.929

5.118

5/8-11

14.6

MJ-PS6-400

20

1.500

2.250

.749

.500

.283

.248

1.259

.629

.551

1.574

2.125

6.535

3/4-10

28.8

MJ-PS6-500

25

1.500

2.250

.749

.500

.283

.248

1.259

.629

.551

1.968

2.145

8.267

3/4-10

44.2

MJ-PS6-630

31 1/2

1.500

2.250

.749

.500

.283

.248

1.259

.629

.551

1.968

2.145

8.858

3/4-10

44.2

MJ-PS6-800
