GATOR CHUCK

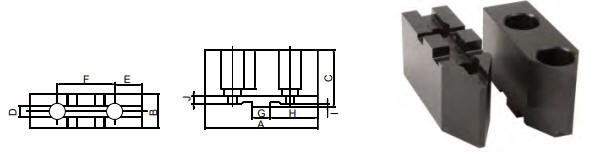

REPLACEMENT SOFT TOP JAWS
3-JAW CHUCKS
PA AND PB SERIES
CHUCK
DIAMETER
(INCHES) |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
BOLT
SIZE
(INCH) |
WT.
(LBS) |
PART MUMBER |
|
5 |
2.250 |
.866 |
1.520 |
3.129 |
.591 |
1.250 |
.500 |
1.000 |
.126 |
.283 |
5/16-18 |
.066 |
STJ-PS1-125 |
|
6 1/4 |
3.071 |
1.000 |
1.634 |
3.129 |
.838 |
1.500 |
.500 |
1.339 |
.126 |
.283 |
3/8-16 |
1.01 |
STJ-PS1-160 |
|
8 |
3.543 |
1.063 |
1.713 |
3.129 |
.948 |
1.750 |
.500 |
1.575 |
.126 |
.126 |
3/8-16 |
1.43 |
STJ-PS1-200 |
|
10 |
4.173 |
1.280 |
2.028 |
.500 |
1.082 |
2.125 |
.750 |
1.772 |
.126 |
.283 |
1/2-13 |
2.54 |
STJ-PS1-250 |
|
12 1/2 |
4.724 |
1.575 |
2.165 |
.500 |
1.208 |
2.500 |
.750 |
2.087 |
.248 |
.283 |
1/2-13 |
3.53 |
STJ-PS1-315 |
|
15 3/4 |
5.512 |
1.654 |
2.539 |
.500 |
1.354 |
3.000 |
.750 |
2.480 |
.248 |
.406 |
5/8-11 |
4.85 |
STJ-PS1-400 |
|
20 |
5.512 |
1.969 |
2.933 |
.500 |
1.354 |
3.000 |
.750 |
2.480 |
.248 |
.406 |
3/4-10 |
5.29 |
STJ-PS1-500 |
|
25 & 32 |
6.299 |
2.047 |
3.288 |
.500 |
1.354 |
3.000 |
.750 |
2.480 |
.248 |
.406 |
3/4-10 |
9.26 |
STJ-PS1-630 |
GATOR TECH-TRU ADJUSTIBLE CHUCK

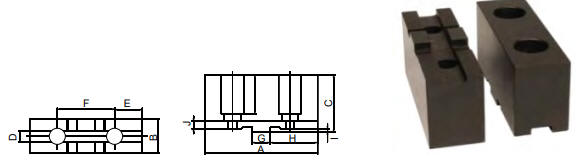

REPLACEMENT SOFT TOP JAWS
6-JAW CHUCKS
PA SERIES
CHUCK
DIAMETER
(INCHES) |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
BOLT
SIZE
(INCH) |
WT.
(LBS) |
PART MUMBER |
|
5 |
2.250 |
.866 |
1.520 |
3.129 |
.591 |
1.250 |
.500 |
1.000 |
.126 |
.283 |
5/16-18 |
.066 |
STJ-PS6-125 |
|
6 1/4 |
3.071 |
1.000 |
1.634 |
3.129 |
.838 |
1.500 |
.500 |
1.339 |
.126 |
.283 |
3/8-16 |
1.01 |
STJ-PS6-160 |
|
8 |
3.543 |
1.063 |
1.713 |
3.129 |
.948 |
1.750 |
.500 |
1.575 |
.126 |
.126 |
3/8-16 |
1.43 |
STJ-PS6-200 |
|
10 |
4.173 |
1.280 |
2.028 |
.500 |
1.082 |
2.125 |
.750 |
1.772 |
.126 |
.283 |
1/2-13 |
2.54 |
STJ-PS6-250 |
|
12 1/2 |
4.724 |
1.575 |
2.165 |
.500 |
1.208 |
2.500 |
.750 |
2.087 |
.248 |
.283 |
1/2-13 |
3.53 |
STJ-PS6-315 |
|
15 3/4 |
5.512 |
1.654 |
2.539 |
.500 |
1.354 |
3.000 |
.750 |
2.480 |
.248 |
.406 |
5/8-11 |
4.85 |
STJ-PS6-400 |
|
20 |
5.512 |
1.969 |
2.933 |
.500 |
1.354 |
3.000 |
.750 |
2.480 |
.248 |
.406 |
3/4-10 |
5.29 |
STJ-PS6-500 |
|
25 & 32 |
6.299 |
2.047 |
3.288 |
.500 |
1.354 |
3.000 |
.750 |
2.480 |
.248 |
.406 |
3/4-10 |
9.26 |
STJ-PS6-630 |
