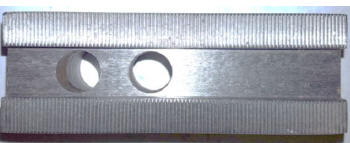

VERTECH OFFSET SOFT TOP JAWS
WITH 1.5MM X 60° SERRTIONS



			Critical Dimensions					STEEL
Chuck Dia Inch	Groove Width G	Bolt Size	Center to Center D	Hole to Front J	Width Inch C	Length Inch B	Height Inch A	Part Number
8"	0.630	12MM	0.984	2.000	1.50	3.750	2.00	VHO 8200
	0.630	12MM	0.984	2.000	1.50	3.750	3.00	VHO 8300
10"	0.709	14MM	1.181	2.375	1.50	4.500	2.00	VHO 10200
12"	0.827	16MM	1.378	3.125	2.00	5.500	2.00	VHO 12200
	0.827	16MM	1.378	3.125	2.00	5.500	2.50	VHO 12250
	0.827	16MM	1.378	3.125	2.00	5.500	4.00	VHO 12400
When ordering Steel specify "P" for Pointed or "F" for Flat at the end of the part number. (example: VHO 8200P)
