VERTECH AMERICAN STANDARD TONGUE AND
GROOVE SOFT TOP JAWS

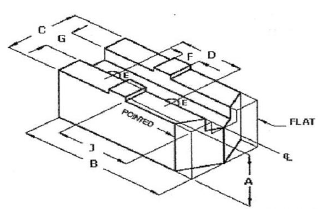

Critical Dimensions
STEEL
Tongue
to Front
J
Groove
Width
G
Tongue
Width
F
Bolt Size
Center to
Center
D
Width
Inch
C
Length Inch
B
Height
Inch
A
Part Number
Flat end jaws
1.360
0.312
0.499
3/8
1.500
1.000
2.750
1.500
VTG 6150F
1.360
0.312
0.499
3/8
1.500
1.000
2.750
2.000
VTG 6200F
1.360
0.312
0.499
3/8
1.500
1.000
2.750
3.000
VTG 6300F
1.360
0.312
0.499
3/8
1.500
1.000
2.750
4.000
VTG 6400F
2.000
0.312
0.499
3/8
1.750
1.250
3.750
2.000
VTG 8200F
2.000
0.312
0.499
3/8
1.750
1.250
3.750
2.500
VTG 8250F
2.000
0.312
0.499
3/8
1.750
1.250
3.750
3.000
VTG 8300F
2.300
0.501
0.749
1/2
2.125
1.500
4.500
2.000
VTG 10200F
2.300
0.501
0.749
1/2
2.125
1.500
4.500
2.500
VTG 10250F
2.300
0.501
0.749
1/2
2.125
1.500
4.500
3.000
VTG 10300F
2.300
0.501
0.749
1/2
2.125
1.500
4.500
4.000
VTG 10400F
2.900
0.501
0.749
1/2
2.500
1.750
5.250
2.000
VTG 12200F
2.900
0.501
0.749
1/2
2.500
1.750
5.250
2.500
VTG 12250F
2.900
0.501
0.749
1/2
2.500
1.750
5.250
3.000
VTG 12300F
2.900
0.501
0.749
1/2
2.500
1.750
5.250
4.000
VTG 12400F
2.900
0.501
0.749
5/8
3.000
1.750
5.750
2.500
VTG 15250F
3.200
0.501
0.749
3/4
3.000
2.500
6.000
4.000
VTG 15406F
3.660
0.501
0.749
3/4
3.000
2.250
6.500
2.500
VTG 18250F
3.660
0.501
0.749
3/4
3.000
2.500
6.500
2.500
VTG 18252F
When ordering Steel
specify "P" for Pointed or "F" for Flat at the end of
the part number.
(example: VTG
12200P) When ordering Aluminum specify
"AP" for Aluminum Pointed, or "AF" for Aluminum Flat at
the end of the part number.
